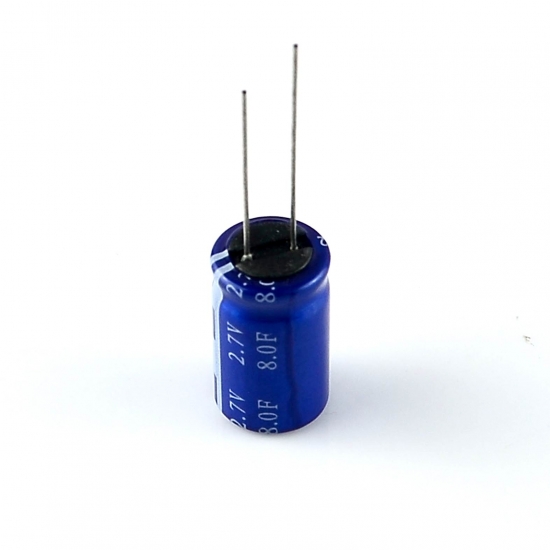

Radial Super Capacitor with Small Size
(EDLC)
Feature
● Green Tech EDLC made of ACP activated carbon electrode and organic electrolyte.● Operate temperature: -40℃~+70℃(SP series),high temperature type: -40℃~+85℃ (SPH series)
● Cycle life 1,000,000 duty times.
● Voltage: 2.7V and 2.8V
● Low ESR,low leakage current. Big capacitance,high reliability. Quickly charge-discharge and can supply high power.
Application
● Smart energy meters,Smart water meter,Smart electricity meter,Smart gas meter● Aircraft,UAS,UAV, Toys
● EVD,VTR,GPS, electric cooker, digital camera,
● self-powered super flashlight,LED and so on.

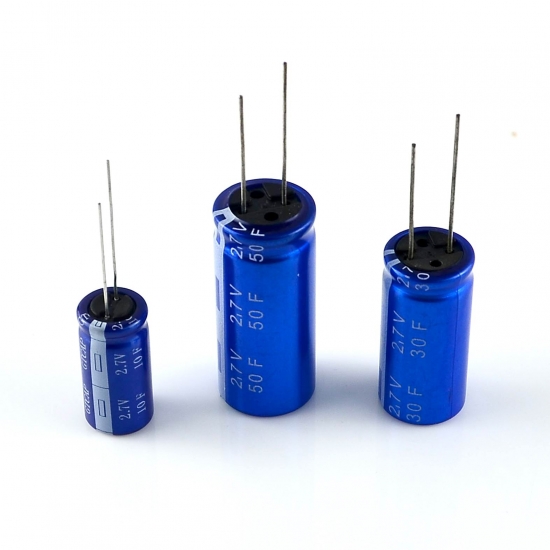

Radial Super Capacitor
|
Part NO. |
Rated Voltage (V) |
Cap (F) |
Max ESR (mΩ) AC 1KHz |
Max.LC @R.T.after 24hrs(mA) |
Max. Peak Current(A) (65℃), 1s (non repetitive) |
Weight (g/pc) |
Size (mm) |
Lead Space P(mm) |
|
GTSP-2R7-254ZR |
2.7 |
0.25 |
700 |
0.005 |
0.32 |
0.7 |
Φ5x12 |
2 |
|
GTSP-2R7-354ZR |
2.7 |
0.35 |
700 |
0.005 |
0.35 |
0.8 |
Φ5x12 |
2 |
|
GTSP-2R7-504ZR |
2.7 |
0.5 |
700 |
0.005 |
0.40 |
1.0 |
Φ6.3x12 |
2.5 |
|
GTSP-2R7-105ZR |
2.7 |
1.0 |
350 |
0.008 |
0.63 |
1.4 |
Φ8x13 |
3.5 |
|
GTSP-2R7-205ZR |
2.7 |
2.0 |
300 |
0.01 |
1.38 |
2.9 |
Φ8x20 |
3.5 |
|
GTSP-2R7-305ZR |
2.7 |
3.0 |
260 |
0.015 |
1.82 |
3.0 |
Φ8x20 |
3.5 |
|
GTSP-2R7-335ZR |
2.7 |
3.3 |
120 |
0.02 |
2.12 |
4.1 |
Φ10x20 |
5 |
|
GTSP-2R7-475ZR |
2.7 |
4.7 |
100 |
0.025 |
2.77 |
4.7 |
Φ12.5x21 |
5 |
|
GTSP-2R7-505ZR |
2.7 |
5 |
90 |
0.03 |
2.89 |
5.0 |
Φ12.5x21 |
5 |
|
GTSP-2R7-805ZR |
2.7 |
8 |
80 |
0.04 |
4.55 |
5.5 |
Φ12.5x21 |
5 |
|
GTSP-2R7-106ZR |
2.7 |
10 |
40 |
0.03 |
9.0 |
6.0 |
Φ12.5x26 |
5 |
|
GTSP-2R7-156ZR |
2.7 |
15 |
30 |
0.04 |
11 |
7.0 |
Φ12.5x31 |
5 |
|
GTSP-2R7-206ZR |
2.7 |
20 |
29 |
0.04 |
14.8 |
8.0 |
Φ16x34 |
7.5 |
|
GTSP-2R7-256ZR |
2.7 |
25 |
27 |
0.05 |
16.9 |
8.0 |
Φ16x34 |
7.5 |
|
GTSP-2R7-306ZR |
2.7 |
30 |
20 |
0.06 |
18.8 |
9.5 |
Φ16x34 |
7.5 |
|
GTSP-2R7-506ZR |
2.7 |
50 |
20 |
0.75 |
27 |
12.2 |
Φ18x40 |
8 |
How to order
|
GT |
S |
□ |
□ □ □ |
□ □ □ |
□ |
□ |
|||||
|
Brand |
Super |
Series |
Rated Voltage |
Capacitance |
Tolerance |
Terminal Type |
|||||
|
Green |
capacitor |
Code |
Series |
Code |
Voltage |
Code |
Value (F) |
Code |
Tolerance |
Code |
Terminal |
|
Tech |
|
P |
Power |
2R5 |
2.5V |
104 |
0.1 |
J |
±5% |
H |
Horizontal |
|
|
|
E |
Energy |
2R7 |
2.7V |
224 |
0.22 |
K |
±10% |
V |
Vertical |
|
|
|
M |
Module |
3R3 |
3.3V |
474 |
0.47 |
M |
±20% |
C |
Coin |
|
|
PH |
Hi-Temp P |
5R0 |
5.0V |
105 |
1.0 |
U |
-10%~20% |
R |
Radial |
|
|
|
EH |
Hi-Temp E |
5R5 |
5.5V |
205 |
2.0 |
V |
10%~30% |
T |
Thread |
|
|
|
MH |
Hi-temp M |
6R3 |
6.3V |
475 |
4.7 |
Z |
-20%~80% |
N |
Snap in |
|
|
|
PP |
Big Power |
012 |
12V |
106 |
10 |
|
|
W |
Weldable |
|
|
|
ML |
Military |
016 |
16V |
206 |
20 |
|
|
P |
Pillar |
|
|
|
|
|
024 |
24V |
506 |
50 |
|
|
S |
Screw in |
|
|
|
|
|
036 |
36V |
107 |
100 |
|
|
L |
Wire |
|
|
|
|
|
048 |
48V |
367 |
360 |
|
|
|
|
|
|
|
|
|
056 |
56V |
407 |
400 |
|
|
|
|
|
|
|
|
|
075 |
75V |
657 |
650 |
|
|
|
|
|
|
|
|
|
100 |
100V |
158 |
1500 |
|
|
|
|
|
|
|
|
|
120 |
120V |
308 |
3000 |
|
|
|
|
|
|
|
|
|
240 |
240V |
508 |
5000 |
|
|
|
|
|
|
|
728 |
7200 |
|||||||||
