Super Capacitor with Snap-in Terminal
Feature
● Green Tech EDLC made of ACP activated carbon electrode and organic electrolyte.● Operate temperature: -40℃~+70℃(SP series)
● Cycle life 1,000,000 duty times.
● Voltage: 2.7V and 2.8V
● Low ESR,low leakage current
● Big capacitance,high reliability.
● Quickly charge-discharge and can supply high power.
Application
● Smart energy meters, smart water meter, smart electricity meter,Smart gas meter● Aircraft, UAS, UAV, Toys
● EVD,VTR, GPS, electric cooker, digital camera.
● Self-powered super flashlight,LED and so on.

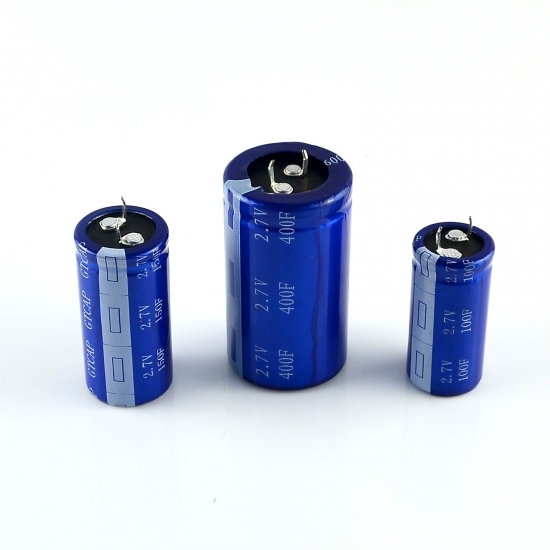

Snap-in Super Capacitor
|
Rated Voltage (V) |
Cap (F) |
Max ESR(mΩ) |
Max.LC @R.T.after 72hrs(mA) |
Weight (grams/pc) |
Size (mm) |
Lead Space P(mm) |
||
|
DC |
AC 1KHz |
|||||||
|

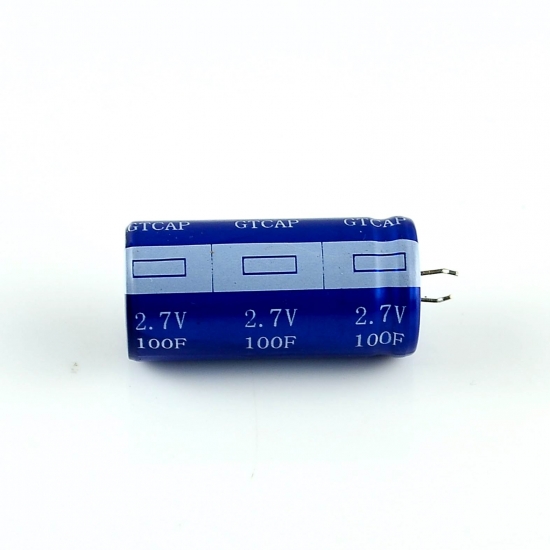

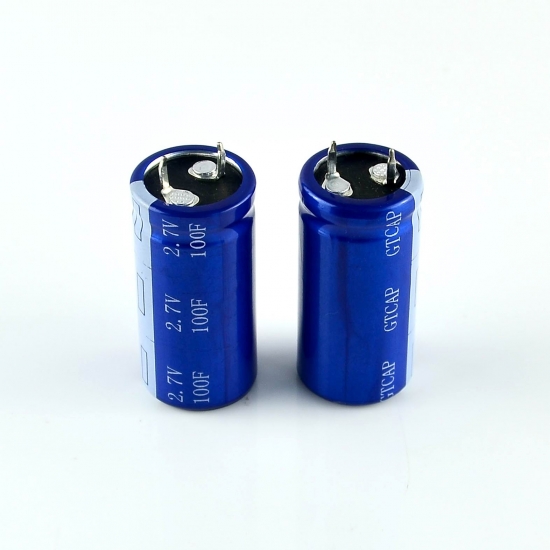

GTSP-2R7-107ZN |
2.7 |
100 |
15 |
11 |
0.2 |
23 |
Φ22x45 |
10 |
|

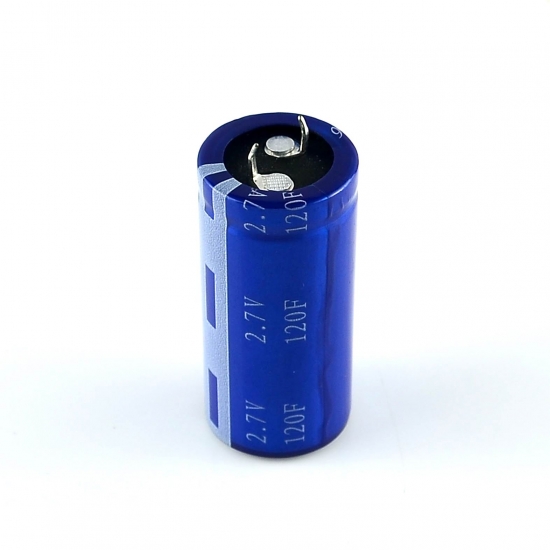

GTSP-2R7-127ZN |
2.7 |
120 |
14 |
11 |
0.2 |
25 |
Φ22x45 |
10 |
|
GTSP-2R7-157ZN |
2.7 |
150 |
14 |
10 |
0.3 |
35 |
Φ25x50 |
10 |
|
GTSP-2R7-207ZN |
2.7 |
200 |
13 |
10 |
0.65 |
42 |
Φ35x62 |
10 |
|
GTSP-2R7-407ZN |
2.7 |
400 |
14 |
10 |
0.85 |
65 |
Φ35x62 |
10 |
How to order
|
S |
□ |
□ □ □ |
□ □ □ |
□ |
□ |
||||||
|
Brand |
Super |
Series |
Rated Voltage |
Capacitance |
Tolerance |
Terminal Type |
|||||
|
Green |
capacitor |
Code |
Series |
Code |
Voltage |
Code |
Value (F) |
Code |
Tolerance |
Code |
Terminal |
|
Tech |
|
P |
Power |
2R5 |
2.5V |
104 |
0.1 |
J |
±5% |
H |
Horizontal |
|
|
|
E |
Energy |
2R7 |
2.7V |
224 |
0.22 |
K |
±10% |
V |
Vertical |
|
|
|
M |
Module |
3R3 |
3.3V |
474 |
0.47 |
M |
±20% |
C |
Coin |
|
|
PH |
Hi-Temp P |
5R0 |
5.0V |
105 |
1.0 |
U |
-10%~20% |
R |
Radial |
|
|
|
EH |
Hi-Temp E |
5R5 |
5.5V |
205 |
2.0 |
V |
10%~30% |
T |
Thread |
|
|
|
MH |
Hi-temp M |
6R3 |
6.3V |
475 |
4.7 |
Z |
-20%~80% |
N |
Snap in |
|
|
|
PP |
Big Power |
012 |
12V |
106 |
10 |
|
|
W |
Weldable |
|
|
|
ML |
Military |
016 |
16V |
206 |
20 |
|
|
P |
Pillar |
|
|
|
|
|
024 |
24V |
506 |
50 |
|
|
S |
Screw in |
|
|
|
|
|
036 |
36V |
107 |
100 |
|
|
L |
Wire |
|
|
|
|
|
048 |
48V |
367 |
360 |
|
|
|
|
|
|
|
|
|
056 |
56V |
407 |
400 |
|
|
|
|
|
|
|
|
|
075 |
75V |
657 |
650 |
|
|
|
|
|
|
|
|
|
100 |
100V |
158 |
1500 |
|
|
|
|
|
|
|
|
|
120 |
120V |
308 |
3000 |
|
|
|
|
|
|
|
|
|
240 |
240V |
508 |
5000 |
|
|
|
|
|
|
|
728 |
7200 |
|||||||||
GTCAP Super Capacitor 4.7F 2.7V 2.8V Ultracapacitor with Radial Lead (EDLC)
GTCAP Radial Lead Electric Double-layer Capacitor (EDLC) 10F 2.7V 2.8V 3.0V
Radial Type Small Size Cell Super Capacitor ( EDLC) 2.7V 2.8V 3.0V (70℃/85℃)
Super Capacitor 8F 2.7V 2.8V 3.0V Ultracapacitor, Radial Lead (EDLC)

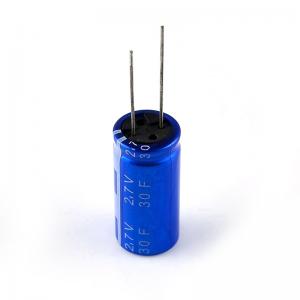

GTCAP Radial Ultra Super Capacitor 30F with Small Size (EDLC)

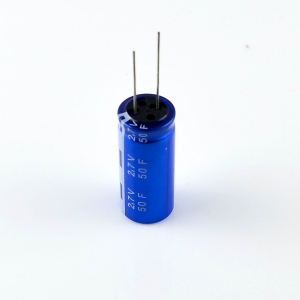

50F Radial Super Capacitor / Ultra Capacitor with small size(EDLC)
