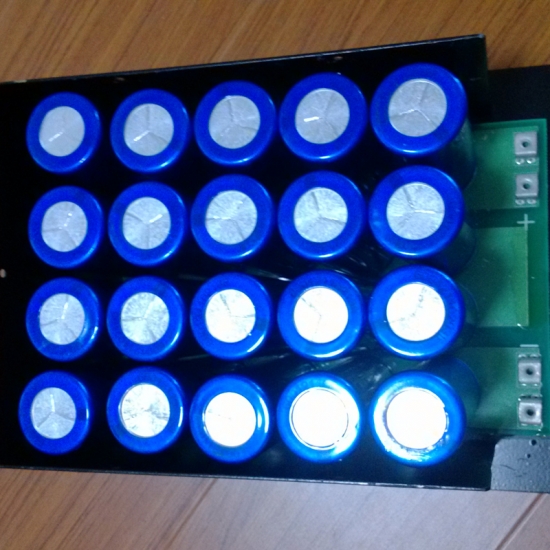

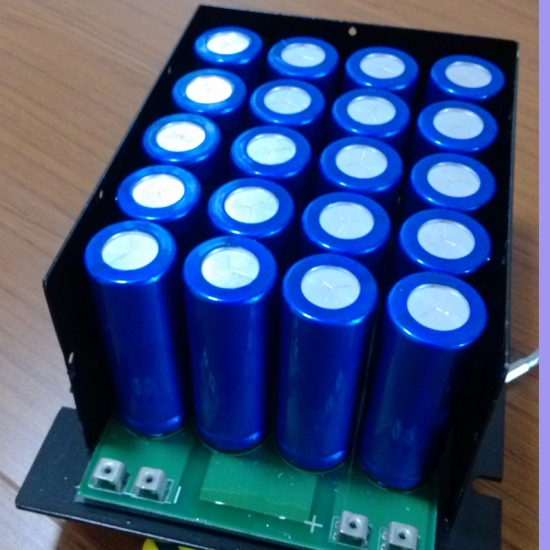

350V 4.4F Super Capacitor Module for Elevators
Feature
● Low ESR,high power● More than 1,000,000 times cycle life
● With unit balancing PCB
● Hard-packed
● Charge-discharge very fast
Aapplication
● Elevator energy recovery system● Telecommunication
● UPS
● Electrical power system
● Automotive start assist
● Transportation
|
GT PN. |
capacitance |
Max. ESR(mΩ) |
Max. Leakage current @25℃ after 72hrs(mA) |
Max. Continuous current 40℃ (A) |
Energy storage (Wh) |
Energy Density (Wh/kg) |
Weight (kg) |
|
|
AC 1KHz |
DC |
|||||||
|
GTSM-350V-4.4FUL |
4.4F |
460 |
560 |
1.2 |
25 |
72.8 |
2.0 |
35 |
|
Rated Voltage |
350VDC |
|
Max. operating voltage |
378VDC |
|
Capacitance Tolerance |
-10%~+20% (25℃) |
|
Operating Temperature |
-40℃~+65℃ △C< initial capacitance 20%,△ESR< initial ESR 50%(25℃) |
|
Storage Temperature |
-40℃~+70℃ |
|
Use life(1500hrs @65℃@ 350VDC) |
△C< initial capacitance 30%,△ESR< initial ESR 100%(25℃) |
|
Storage life (2years @70℃ non-load) |
△C< initial capacitance 30%,△ESR< initial ESR 100%(25℃) |
