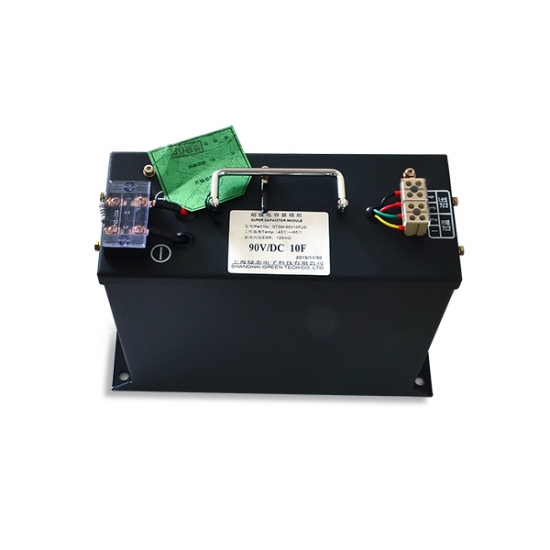

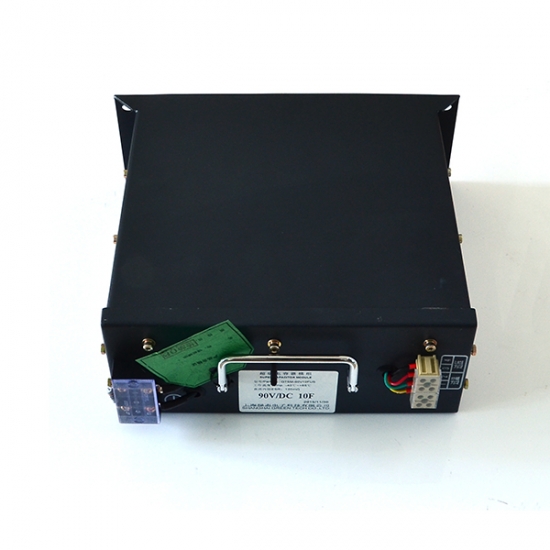

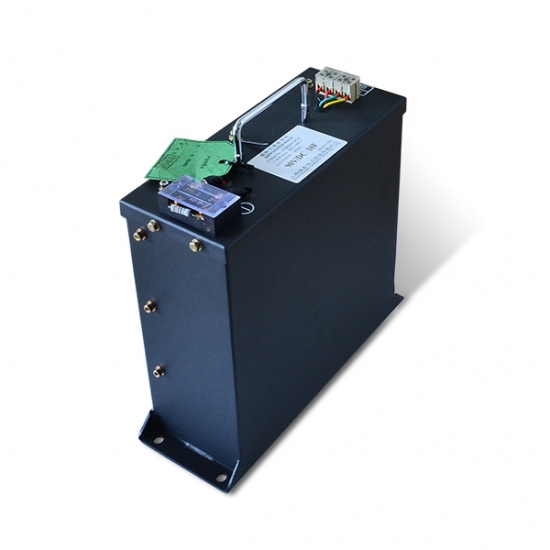

Engine Start Supercapacitor Module 90V 10F
Green Tech has developed a variety of supercapacitor modules (16V, 32V, 48V, 350V etc.) and also has the ability to customize to client specifications.
Features
The 48V module is widely used in new energy buses, passenger cars, and rail transportation, engine start. It recycles energy to reduce exhaust emissions with fuel saving rate between 20%-35%, so as to improve power and motor vehicle performance and extend vehicle lifespan.The 32V module is widely produced for aircraft starting, heavy vehicles, unmanned aerial vehicles, armored vehicles, and tank-starting. It effectively conserves system weight and space while improving system adaptability and maneuverability.
The 16V module is mainly used in idling start-stop systems, military reserve starting power, wind power pitch systems, and smart grids. It improves system adaptability and maneuverability, and reduces system response time.
Typical Application
Automotive, Industrial, Telecommunications, Railway transportation, Uninterruptible Power Supplies(UPS)
GT PN.
Cap.
Vol.
Max. ESR
(mΩ)
Max Energy Storage
(Wh)
Max.Peak Current
1~3 s
(A)
Leakage Current(mA)
@25℃ after 72hrs self discharge
Weight
(kg)
AC
1KHz
DC
GTSM-90V10FUS
10F
90V
120
140
11.25
205
0.5
8.0
Rated Voltage
90VDC
Capacitance Tolerance
0%~+20% (25℃)
Relative Humidity
≤90%
Operating Temperature -40℃~+65℃
△C< 5% initial capacitance(25℃),△ESR< 150% initial ESR(25℃)
Cycle Life (full charge to half discharge 500,000 times
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
Use life (1000hrs @65℃@16VDC)
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
Storage life (2years @70℃ non-load)
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
