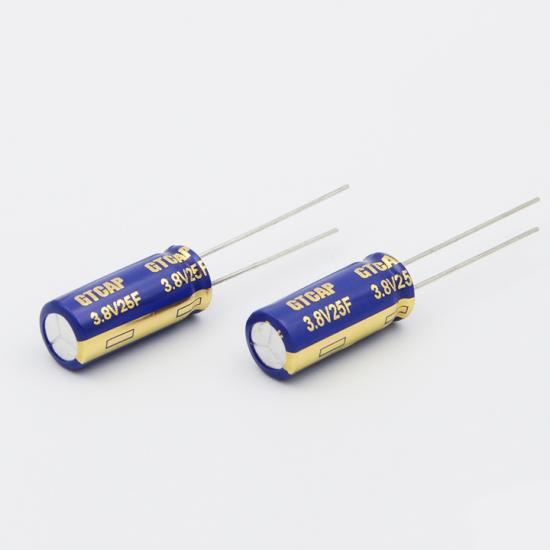

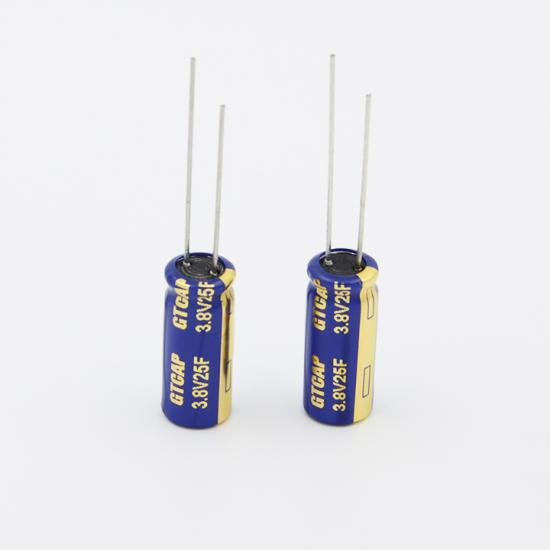

25F 3.8V Hybrid Super Capacitors
|
No. |
产品型号 Part Number |
GTSPL-3R8-256MR |
|
1 |
额定电压 Rated Voltage |
3.8V |
|
2 |
最低工作电压 Min. Operating Voltage |
2.5V |
|
3 |
浪涌电压 Surge Voltage |
4.2V |
|
4 |
标称容量 Rated Capacitance |
25F |
|
5 |
容量允许公差 Capacitance Tolerance |
±20% |
|
6 |
最大交流内阻 Max. ESR/AC @1KHz |
300mΩ |
|
7 |
最大直流内阻 Max. ESR/DC |
650mΩ |
|
8 |
额定充电电流 Rated Charge-discharge Current |
0.125A |
|
9 |
最大充电电流 Max.Charge-discharge Current<5s |
0.8A |
|
10 |
自放电电流3个月 Self-discharge 3 months |
≤ 0.85μA |
|
11 |
最大漏电流 Max. Leakage Current 72hrs |
≤ 2.5μA |
|
12 |
工作温度 Operating Temperature |
-15℃~+70℃/85℃(3.5V) |
|
13 |
存储温度 Storage Temperature |
-25℃~+85℃ |
|
14 |
循环寿命 Cycle Life |
>500,000 times |
|
15 |
重量 Weight |
1.8g |

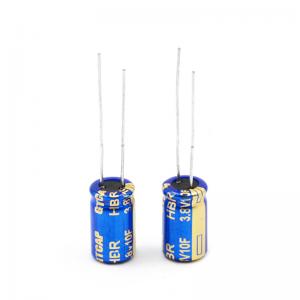

10F 3.8V Li-ion Hybrid Super Capacitors
Graphene Hybrid Ultracapacitor 30F 3.8V with High Energy Density

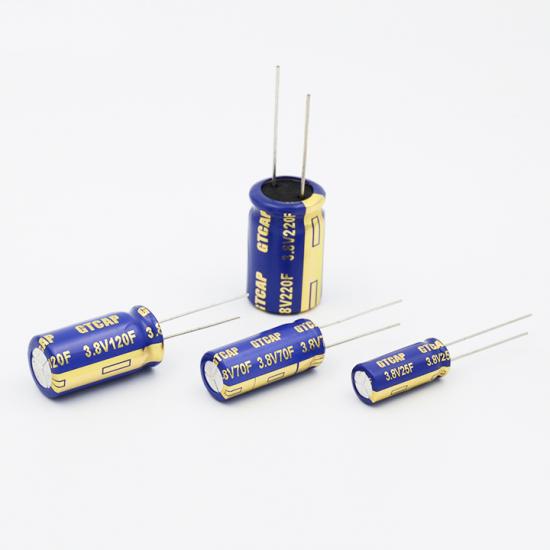

GTCAP Ultracapacitor 70F 3.8V Hybrid Super Capacitors
