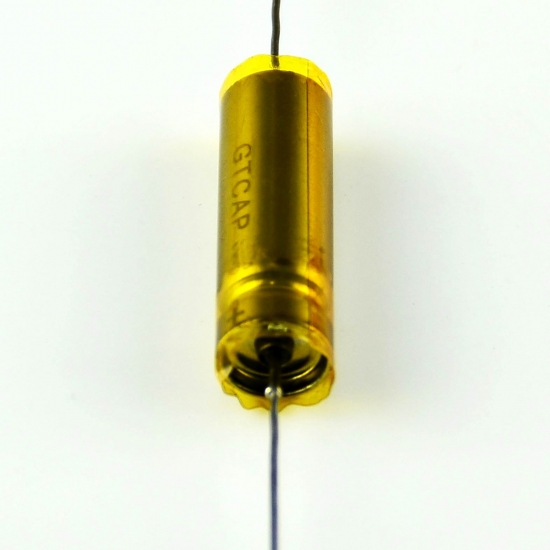

CA58B High-Temp Wet Tantalum Capacitor
All Tantalum Case for -55℃～+200℃ Operation
(hermetic seal)
Brief Introduction and Feature
● CA58B, All tantalum case, hermetic sealed.
● With high-temp insulation sleeve wet tantalum electrolytic capacitors.
● With polar, axial leads through hole,high reliability,long life, high ripple current.
● Widely used in electronic equipment for high-temp applications such as oil down hole drilling,and other DC or PC.
● Meet standard: QJ/PWV344-2011 Cross Vishay part 134D
General Characteristics
● Operating Temperature: -55℃～+200℃(>85℃ with voltage derating);
● Storage temperature：-62℃～+130℃
● Capacitance Tolerance: K=±10% ,M=±20%
How to order: GTCA58B 157 M 100 T3
GT
CA58B
157
M
100
T3
Brand Name
Type
Capacitance
Tolerance
DC Voltage
Case Code
Green Tech
High-temp Wet Electrolytic Tantalum Capacitor
157: 15X107(pF)This is expressed in picofarads. The first two digits are the significant figures. The third is the number of zeros to follow.
K=±10%
50V=050
60V=060
75V=075
100V=100
See table 1
M=±20%
125V=125
